TS-20W Ultrasonic
Wire Splicer
TS-20W
Ultrasonic Welding for Wire Splicing

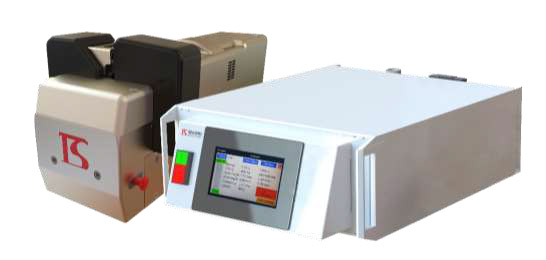

The TS-20W ultrasonic wire splicer offers an entry level welding experience for all types of customers. It is a user friendly and a low maintenance ultrasonic welding solution for many markets with minimal tooling cost. The unit features a built in touchscreen monitor within the controller making the product user friendly. The machine’s weld capabilities cover a large range of cross-section sizes running from 0.05mm² to 32mm². In addition, it provides numerous benefits over traditional welding methods. Thus, ultrasonic wire splicer is a one-step splice machine for joining non-ferrous metals. No heat is applied and there are no consumables or connectors needed.
Versatile Design with Precise Quality
- Ability to weld cross-section area ranging from 0.5 mm2 to 32 mm2
- Precise measurement of pre-weld and post weld height
- Consistent measurement and ultrasonic output, produce high cPk valuses
Eco-Friendly and Efficient
- Operates at 20 times less energy than resistance welding
- No need for outside consumables used in current crimping and soldering methods
- Produces strong joints with high thermal and electrical conductivity
- Tooling can last over one million cycles with small wire cross-sections
For more technical information, please download our brochure.
Ultrasonic Wire Splicer Samples
