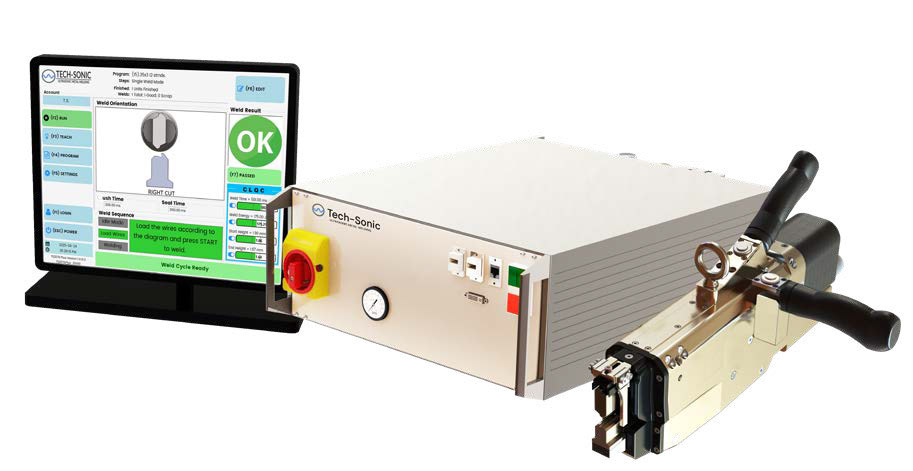

TS-20TSC-EX Plus
The TS-20TSC-EX Plus Compact Ultrasonic Tube Sealer is the right choice for welding in flammable refrigerant environments.
Tech-Sonic’s ultrasonic metal tube sealer model TS-20TSC-EX Plus “Explosion Proof” provides a solution for a large
array of metal tube sealing applications but with the added benefit of a smaller, compact design, and greater monitoring
and data reporting capabilities. The TS20TSC-EX Plus utilizes a one-step weld and cut process. This ultrasonic metal
tube sealer is approved to work with flammable refrigerants. It is compatible with the EPA – Mandated HCFC phase out
and the Clean Air Act and can be used with iso-butane refrigerant (Directive 2014/34/EV). In addition, it is compatible
with Hydrocarbons, Hydrofluorocarbons, and ammonia refrigerant alternatives. The TS-20TSC-EX Plus eliminates any
unsafe gas accumulation through electric startup, while remaining continuously active while powered up and meets
governmental certification TPS 23 ATX122422 0001X.
Versatile Design with Precise Quality
- Simple one-step calibration
- Precise measurement of pre-weld & post-weld height
- No need for outside consumables used in current crimping and brazing methods
- Dual sided horn to last at least 40k cycles*
- Advanced quality monitoring features
- Network and data acquisition capable
- Assembled in the USA
Eco-Friendly and Efficient
- Operates at 20 times less energy than resistance welding
- No need for outside consumables used in current crimping and soldering methods
- Dual sided horn to last at least 40K cycles
- Made in the USA
For more technical information, please download our brochure.
Metal Tube Sealing Sample
